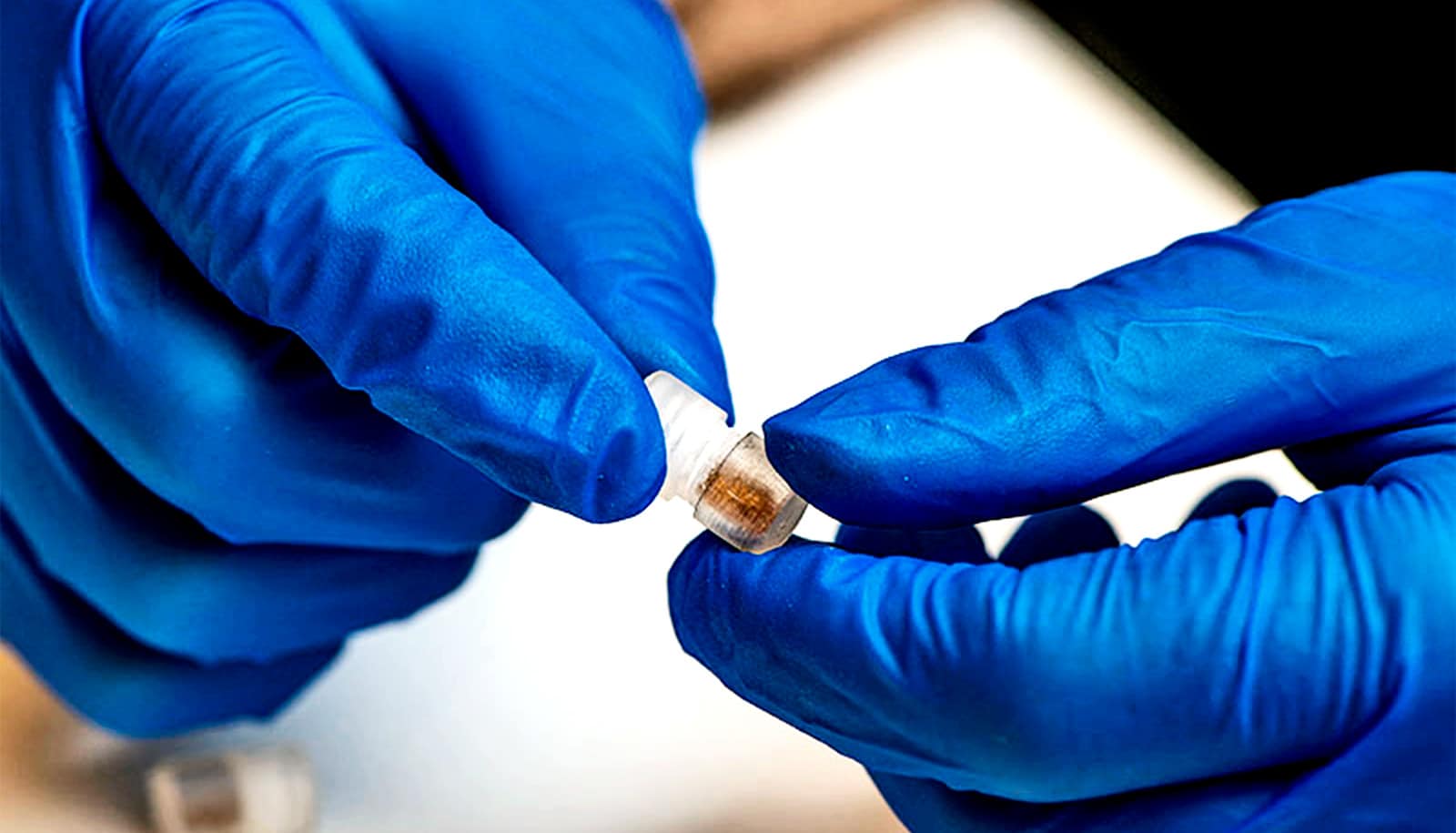

Once swallowed, this capsule is designed to collect bacteria throughout the gut. A scientist unscrews the cap to retrieve the sample after the capsule has left the digestive system. (Credit: Mark Simons/Purdue)

‘Pill’ could sample bacteria while in your gut

Swallowing a tiny capsule could offer a full view of your GI tract and gut bacteria. The tiny tool could even scoop up bacteria and deliver them to doctors.

Kayla Wiles-Purdue • futurity
Aug. 13, 2020 5 minSource

A new swallowable tool acts like a colonoscopy, except that instead of looking at the colon with a camera, it takes samples of gut bacteria.

Your gut bacteria could say a lot about you, such as why you’re diabetic or how you respond to certain drugs, but scientists can see only so much of the gastrointestinal tract. What comes out of you is just a small sample of these bacteria, without indicating where they came from in the digestive system .

The technology could also move throughout the whole GI tract, not just the colon. This tract, in addition to the colon, includes the mouth, esophagus, stomach, pancreas, liver, gallbladder, small intestine, and rectum.

Essentially, this tool would make it possible to conduct a “gut-oscopy.”

“It’s all about being able to take samples of bacteria anywhere in the gut. That was impossible before,” says Rahim Rahimi, an assistant professor of materials engineering at Purdue University.

The tool is a drug-like capsule that passively weasels through the gut without needing a battery. A pill version of a colonoscopy is already commercially available to view areas of the colon that a traditional colonoscopy can’t see, but neither tool can sample bacteria.

“If a colonoscopy or camera pill sees blood, it can’t sample that area to investigate further. You could just sample bacteria from a person’s fecal matter, but bacteria can vary a lot throughout the GI tract. Our approach could be complementary,” Rahimi says.

The bacteria-sampling capsule also would be a lot cheaper, each costing only about a dollar, he estimates.

Rahimi’s team is working on testing this capsule in pigs, which have a similar GI tract to those of humans. An initial demonstration of the prototype is published in RSC Advances .

The researchers 3D-printed the capsule out of resin, the same material used in dental molds and implants. This material would need to be slightly modified for humans to ingest, but is otherwise nontoxic, Rahimi says.

When exposed to the pH of a certain gut location, the capsule’s biodegradable cap dissolves. Inside the capsule, a hydrogel similar to those used in diapers expands and collects intestinal fluid containing bacteria. Pressure closes shut the capsule’s aperture when the sampling is complete, kind of like a plunger.

The researchers have tested the prototype capsule in a culture solution designed to simulate the gut bacterial flora of a GI tract. They also tested the capsule’s ability to protect the sampled bacteria in different extreme environments. Their experiments so far show that the capsule could successfully sample bacteria common in the gut, such as E. coli , within an hour.

In a human, the capsule would continue to move throughout the GI tract with other fecal matter. A scientist could then recover the capsule from a study participant’s fecal matter, unscrew the capsule, and study the collected bacteria.

“This approach is providing new opportunities to study what type of bacteria are present in the gut. It would help us figure out how to manipulate these bacteria to combat disease,” Rahimi says.

A patent has been filed for this technology through the Purdue Research Foundation Office of Technology Commercialization. Funding for the work came from Eli Lilly and Company and Purdue’s School of Materials Engineering.

Source: Purdue University
