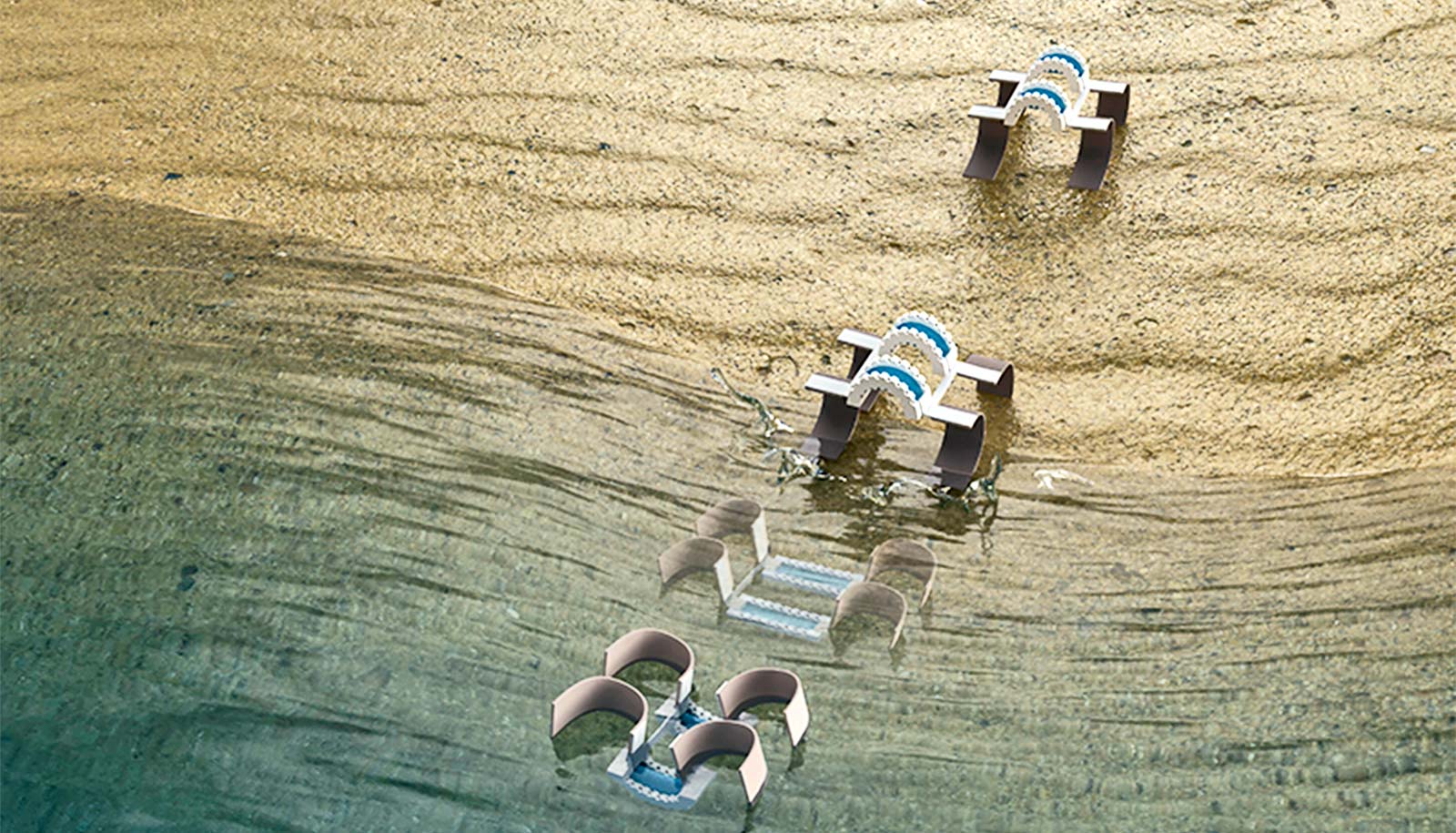

Researchers at Carnegie Mellon have created soft robots that can seamlessly shift from walking to swimming. (Credit: Carnegie Mellon)

Soft robot easily goes from land to water

New soft robots can shift from walking to swimming. They could one day be used in rescue situations or to interact with sea animals or coral.

Aaron Aupperlee-Carnegie Mellon • futurity
March 16, 2023 5 minSource

Researchers have created soft robots that can seamlessly shift from walking to swimming or from crawling to rolling.

Most animals can quickly transition from walking to jumping to crawling to swimming if needed without reconfiguring or making major adjustments. But most robots can’t.

“We were inspired by nature to develop a robot that can perform different tasks and adapt to its environment without adding actuators or complexity,” says study co-first author Dinesh K. Patel, a postdoctoral fellow in the Morphing Matter Lab in the School of Computer Science’sHuman-Computer Interaction Institute at Carnegie Mellon University.

“Our bistable actuator is simple, stable, and durable, and lays the foundation for future work on dynamic, reconfigurable soft robotics.”

The bistable actuator is made of 3D-printed soft rubber containing shape-memory alloy springs that react to electrical currents by contracting, which causes the actuator to bend. The team used this bistable motion to change the actuator or robot’s shape. Once the robot changes shape, it is stable until another electrical charge morphs it back to its previous configuration.

“Matching how animals transition from walking to swimming to crawling to jumping is a grand challenge for bio-inspired and soft robotics,” says Carmel Majidi, a professor in the mechanical engineering department.

For example, one soft robot the team created has four curved actuators attached to the corners of a cellphone-sized body made of two bistable actuators. On land, the curved actuators act as legs, allowing the robot to walk. In the water, the bistable actuators change the robot’s shape, putting the curved actuators in an ideal position to act as propellers so it can swim.

“You need to have legs to walk on land, and you need to have a propeller to swim in the water. Building a robot with separate systems designed for each environment adds complexity and weight,” says co-first author Xiaonan Huang, an assistant professor of robotics at the University of Michigan and Majidi’s former PhD student. “We use the same system for both environments to create an efficient robot.”

The team created two other robots: one that can crawl and jump, and one inspired by caterpillars and pill bugs that can crawl and roll.

The actuators require only a hundred millisecond of electrical charge to change their shape, and they are durable. The team had a person ride a bicycle over one of the actuators a few times and changed their robots’ shapes hundreds of times to demonstrate durability.

In the future, the robots could be used in rescue situations or to interact with sea animals or coral. Using heat-activated springs in the actuators could open up applications in environmental monitoring, haptics, and reconfigurable electronics and communication.

“There are many interesting and exciting scenarios where energy-efficient and versatile robots like this could be useful,” says Lining Yao, assistant professor in the HCII and head of the Morphing Matter Lab.

The study appears in the journal Advanced Materials Technologies . Additional coauthors are from UCLA and Carnegie Mellon.

Source: Carnegie Mellon University

The post Soft robot easily goes from land to water appeared first on Futurity .
